Meet the Tuner's Car!
What kind of car does the one offering these tips and tuning service have? See the mods and necessary tuning done for an example of what you can do!

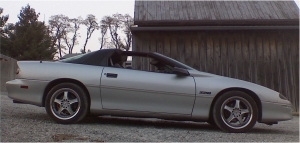

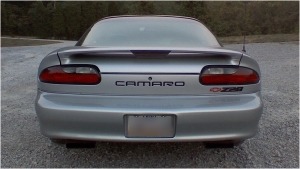

My Camaro Z28
This tuning tips and service website ultimately came to be because of owning my own LT1 equipped car since the year 2000: a six-speed 1995 Chevy Camaro Z28. Over the years, I've come to appreciate its power, handling, and reliability. It even gets good gas mileage on the highway!
This page is to show you how my tips on this website come directly from personal experience, and just to showcase another LT1 car for those considering buying one used.
From the Factory
- Sebring Silver Exterior
- Black Roof and Side Mirrors
- Charcoal/Light Gray Two-Tone Cloth Interior
- T-Tops
- Borg Warner T-56 Six-Speed Manual Transmission
- 3.42:1 Differential Gear Ratio
- Air Conditioning
Oil Cooler(Deleted for header install)- 140 Amp Alternator
- Cruise Control
- Keyless Entry
- Power Windows
- Power Locks
- Power Driver's Seat
The Mods
Below is a detailed list of mods done to the car, including any relevant part numbers.
Engine
Internal
- Forged 383ci
- 4.030" Overbore
- Eagle Forged 3.75" Crank
- Eagle Forged H-Beam 6" Rods
- JE SRP Forged Pistons - Single Valve Relief
- Canton Road Racing Oil Pan (6 qt)
- Standard Volume/High Pressure Oil Pump
- Lunati Camshaft: 243/251 duration (@ 0.050"), 110 LSA, 0.597"/0.603" valve lift
- Comp-Cam Pro Racing Lifters
- Comp-Cam Pro Magnum 1.6RR @ 1/6 turn past zero lash
External
- Lloyd Elliott LE2 Ported LT1 Heads
- Lloyd Elliott Ported LT1 Intake
- Professional Products 58mm Throttle Body - custom idle air bleed hole drilled through
- 4" Custom CAI to 3.5" K&N Air Filter
- 1LE Rubber Intake Elbow (no air silencer)
- ASP Integrated 24% Underdrive Pulley & Dampener (ASP-945100)
- Hypertech 160°F PowerStat (HYP-1008)
- CSI Electric Water Pump
- Cloyes True Double-Roller Timing Chain Kit (CLO-9-3145)
- EGR Block-off Plates
Fuel
- 42# Lucas/Delphi 01D030B Injectors
- QFS 340 LPH Fuel Pump
- Racetronix Fuel Pump Hotwire Kit
- Accel Adjustable FPR (45 psi fuel pressure)
- Experimenting between using 93 octane or 100% E85 fuel
Electrical/Ignition
- Optoma Red top Battery
- GM LT4 Knock Module (16214681)
- NGK TR6 spark plugs (gapped at ~0.035-0.040")
- Accel 300+ Race 8.8mm spark plug wires
- Accel SuperCoil (ACC-140011)
- Delphi Opti-Spark
Exhaust
- LaMonte Performance Parts (LPP) 321 Stainless Long-Tube Stepped Headers (1 3/4" -> 1 7/8")
- LaMonte Performance Parts (LPP) 321 Stainless 3" Y-Pipe
- Flowtech 3" Exhaust Cutout (53031)
- DMH Performance Electric Cutout Controller
- Allows opening and closing of the exhaust cutout from inside the cockpit
- Fully adjustable between the "open" and "closed" positions
Clutch/Transmission
- Pro 5.0 Shifter (82-T56) w/ shortened stick
- McLeod Street Twin Clutch Setup
- Dual-Mass Aluminum Flywheel
- Custom Twin Discs
- Custom Pressure Plate
- Custom Throw-out Bearing
- Custom Aluminum Master Cylinder (139001)
- GM Roller Pilot Bearing (14061685)
- Valvoline Synthetic DOT 3 & 4 Brake (Clutch) Fluid
- Redline ATF
- GM 3" Aluminum LS1 Driveshaft (12564004)
- Energy Suspension Polyurethane Transmission Mount (Black, 3-1108)
- Energy Suspension Polyurethane Torque Arm Bushing (Black, 3-1111)
- Energy Suspension Polyurethane Engine Mounts (ENS-3-1127Y, ENS-3-1116Y)
Interior
Gauges
- AutoMeter Wideband Gauge (ATM-3878)
- AutoMeter Electric Fuel Pressure Gauge (ATM-3363)
- AutoMeter Electric N2O Pressure Gauge (ATM-3374)
- AutoMeter Electric Oil Temperature Gauge (ATM-3347)
Audio
- HiFiMeDIY Sabre USB DAC Digital to Analog Audio Converter 96khz/24bit ES9023+TE7022 (Cell Phone as Head-Unit)
- Audio Control OVERDRIVE PLUS Line Driver
- Audison SRX4 4-channel amp
- Front: MB-Quart DSD-216
- Rear: Focal Utopia 6W woofers & TNK tweeters
- Xtant 102M mono amp
- Image Dynamics IDQ12 D4.V2 - Baffle Mounted (free air in hatch driver's cubby hole)
Sound Suppression
- Sound deadener (Brown Bread/Dynamat style) installed fully on floor basin, rear seat back, doors and B-pillars
- Sound dampener (closed-cell foam) installed on top of deadener
Fabric
- Custom Deluxe Black Carpet
- Custom Black Vinyl Headliner and Visors
Suspension/Body
Steering:
- 98-02 F-Body Steering Rack
- 98-02 F-Body Steering Shaft
- Custom Power Steering Fluid Cooler - mounted on lower airdam
- Redline Power Steering Fluid
Brakes:
- 98-02 LS1 Front Brakes
- Brake Performance '02 F-Body Premium Cross-Drilled & Slotted Brake Rotors (#CB-62055)
- Black Calipers
- Ceramic Brake Pads
- Earl's Stainless Steel Braided 5-Line Brake Kit (EAR-28A030)
- Valvoline Synthetic DOT 3 & 4 Brake Fluid (059)
Rear-End
- Polished & Clear-Coated MAC 7 5/8" 10-Bolt Aluminum Differential Cover
- Pre-loaded Bearings @ 10ft/lbs
- Grade 8 Bolts
- Red Line Synthetic 75W90 Differential Fluid (90-205)
- GM Synthetic Limited Slip Differential Additive (1052358)
- Slotcar Performance Adjustable Panhard Bar
- Billet aluminum
- Teflon-coated heim joints
- DMH Performance Rear Lower Control Arms
- Polished Aluminum
- Circles Cut (Weight Savings)
- Polyurethane Bushings
- Anti-Binding Brackets
- DMH Performance Rear LCA Relocation Brackets
- Kenny Brown Double Diamond Subframe Connectors (19204)
- Suspension Techniques 35mm Front & 25mm Rear Sway Bars (Gray)
- PST Graphite-Impregnated Polyurethane Bushings (Red)
- BMR Shock Tower Brace (Silver)
- Valvoline/Mobil-1 Synthetic Chassis Grease
Wheels/Tires
- Konig Monsoon 17x9.5 Aluminum Wheels
- 275/40/17 General GMAX AS-07 Radials (Performance All-Season); great traction, highly recommend!)
Nitrous Oxide
- Nitrous Express (NX) Shark Nozzle kit (100 or 150HP)
- NX Bottle Heater
- NX Remote Valve Opener
- NX Purge Kit
- Custom switch panel
Still being updated!
The Tune
You didn't think I'd talk about the car without giving you info on how I've tuned it, did you? :)
Since having a "bigger" cam installed, tuning has become even more important, and requires tweaking of more tables than is normally necessary for a stock car.
Basics
I removed my skip-shift (CAGS/CARS) by simply toggling the switch. I also disabled VATS (anti-theft), because my key doesn't always make contact with the ignition (old, etc.). Then EGR was disabled, because my aftermarket cam provides a natural exhaust reversion, and my EGR valve is old and sticks somewhat anyway.
Next, I had to tune for my 42# Delphi fuel injectors. They require longer offsets than the stock injectors.
Spark Timing
I redid my spark timing tables, increasing advance at idle, and graduating up the main tables until the new torque peak (around 4000-4500 according to Desktop Dyno), rather than the stock peak of 2800. Much more advance was needed in the lower-mid RPM/load sections, to accomodate the lower VE of the engine due to significant valve overlap. I upped the WOT timing advance as well, peaking it at around 4000 RPM. Lastly, I upped the closed TPS advance, especially at idle.
AFR
I am running open loop only, using my wideband to monitor and tune the fueling. This works best with bigger cams, since the factory narrow-band O2 sensors are too slow and ineffecient to control the fueling very well.
I leaned out the fuel mixture when in open loop, to increase MPG. I used VEmaster while in speed density mode to calibrate my VE tables. I also leaned out the AFR at WOT, also reorienting where it began getting richer/leaner; coming from richer than 13.0 until just before the torque peak at ~4500 RPM, leveling there until just before the power peak at ~6300 RPM, then getting richer again.
And I fine-tuned the transient fueling tables to get great throttle response and get rid of exhaust popping!
Still being updated!
